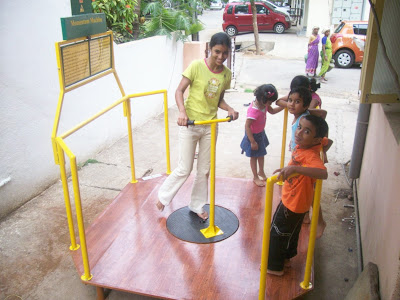

These "Child Inspectors" are certifying the exhibit with a "VOVH" before dispatching it to the science centre
The assembly showing the wheel axle and Rotating platform
Hub assembly in place

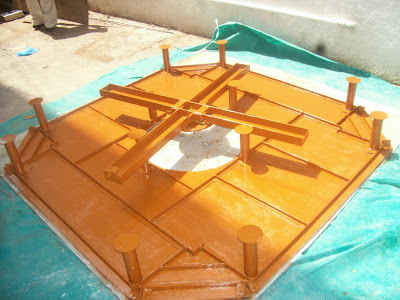

....................................Frame work detailsWe have used the Fiat car front wheel axle assembly for the movement. As the assembly was inclined to the swiveling posts, suitable clamping was made. Top plywood was fixed to the hub flange with an iron disc. The entire platform was covered with Vinyl. Foot print were made with round head star screws.
